Extend 1080p HDMI Digital Video & Audio via One CAT6/7 Cable

Display picture and sound on an LCD monitor up to 200 feet away from the source.

Also known as: HDMI extender, Media center extender, Set-top box extender, HDMI monitor extender,
HDMI transmitter - receiver, HD extender, high definition extender, send video.

Additional Product Information

  Data Sheet (PDF)
 HDMI Extender - Extend HDMI signal up to 200 feet

XTENDEX® ST-C5HDMI-150 (Remote and Local Unit)





HDMI Extender for use with Digital Signage  RoHS Compliant HDMI Extender


Features & Applications

The XTENDEX® HDMI Extender transmits digital video and audio signals up to 200 feet from an HDMI source. Each video extender consists of a local unit that connects to an HDMI source (Blu-Ray player, satellite receiver, etc.), and a remote unit that connects to an HDMI display. The local and remote units are interconnected via one CAT6/7 solid cable.

Optional daisy-chain receivers allow you to extend one video source to multiple displays and to reach longer distances. The daisy-chain receivers are available in one-output and three-output options.
  • Transmits an uncompressed HDMI signal over one CAT6/7 cable.
  • Supports HDTV resolutions up to 1080p and computer resolutions up to 1920x1200 (WUXGA).
  • Compliant with HDMI 1.2 and HDCP 1.1 standards.
  • Supports the DDC2B protocol.
  • Only one power supply is necessary to power both the local and remote units.

Specifications

Local Unit (Transmitter)
  • One female HDMI-A port for source connection.
  • One female RJ45 port for sending high definition video/audio signals and DDC signal.
  • Signal type: HDMI 1.2, HDCP 1.1 compliant.
Remote Unit (Receiver)
  • One female HDMI-A port for display.
  • One female RJ45 port for receiving high definition video/audio signals and DDC signal.
  • Supports HDTV resolutions up to 1080p and computer resolutions up to 1920x1200 (WUXGA).
  • Maximum extension is 200 feet using CAT7 solid 600 MHz STP cable, and 150 feet using CAT6 solid 550 MHz cable.
Optional Daisy-Chain Remote Unit (Receiver)
  • One-output and three-output models available.
  • Enables a daisy chain of five receivers at 1080p / eight receivers at 1080i/720p.
    • The three-output receiver supports three displays for a total of 15 displays at 1080p and 24 displays at 1080i.
  • ST-C5HDMI-RD-150: one female HDMI-A port for HDTV or computer display.
  • ST-C5HDMI-RD3-150: three female HDMI-A ports for HDTVs or computer displays.
  • One female RJ45 port for receiving high definition video/audio signals and DDC signal.
  • One female RJ45 port for sending high definition video/audio signals and DDC signal.
  • Only every third receiver in daisy-chain needs power supply.
  • Maximum extension is 200 feet using CAT7 solid 600 MHz STP cable or 150 feet using CAT6 solid 550 MHz cable.


HDMI Extender


Connect an HDMI source such as a set-top box to a HDTV display up to 200 feet away.
Power
  • Local unit: 100 or 240 VAC at 50 or 60 Hz via AC adapter (included).
  • Remote unit: powered from local unit via CAT6/7 solid cable.
  • Power Consumption: Local unit: 6W; Remote unit: powered from local unit.
Cables
  • Use HDMI-xx-MM cable to connect an HDMI source or display.
  • CAT6 UTP solid 550 MHz or better cable with TIA/EIA-568B wiring terminated with standard RJ45 connectors is recommended for 1080p applications (not included).
    • Extension distances will vary with the resolution and quality of the cable used.
Environmental
  • Operating temperature: 5 to 122°F (-15 to 50°C).
  • Storage temperature: -40 to 185°F (-40 to 85°C).
  • Operating Relative Humidity: 0% to 90% non-condensing RH.
  • Storage Relative Humidity: 0% to 80% non-condensing RH.
Dimensions WxDxH (in)
  • ST-C5HDMI-150: 2.5x2.8x0.9 (local and remote unit)
  • ST-C5HDMI-RD-150: 3.9x3.2x1.4
  • ST-C5HDMI-RD3-150: 5x4.7x1.4
Regulatory Approvals
  • RoHS, CE, FCC
Warranty
  • Two years.

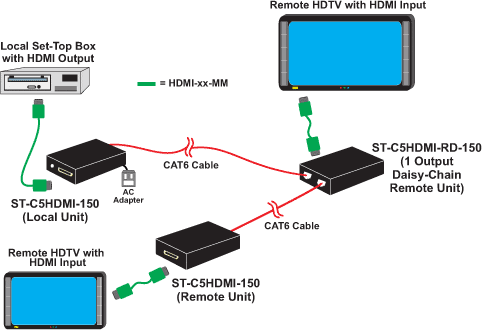

HDMI Extender + One-Output Daisy-Chain Receiver


Daisy-Chain Receivers to connect additional displays



Distances and Resolutions for CAT6 and CAT7 Cable

NTI Part # Cable Distance (feet) Maximum HDTV Resolution
ST-C5HDMI-150 CAT6 550MHz 150 1080p
CAT7 600MHz 200 1080p

HDMI Extender via One CAT6

NTI Part # Description Price $ # to Quote # to Buy Download
a Manual
ST-C5HDMI-150 HDMI Transmitter and Receiver 355 Download PDF Manual for ST-C5HDMI-150
ST-C5HDMI-RD-150 One Output HDMI Daisy Chain Receiver 305
ST-C5HDMI-RD3-150 Three Output HDMI Daisy Chain Receiver 510
